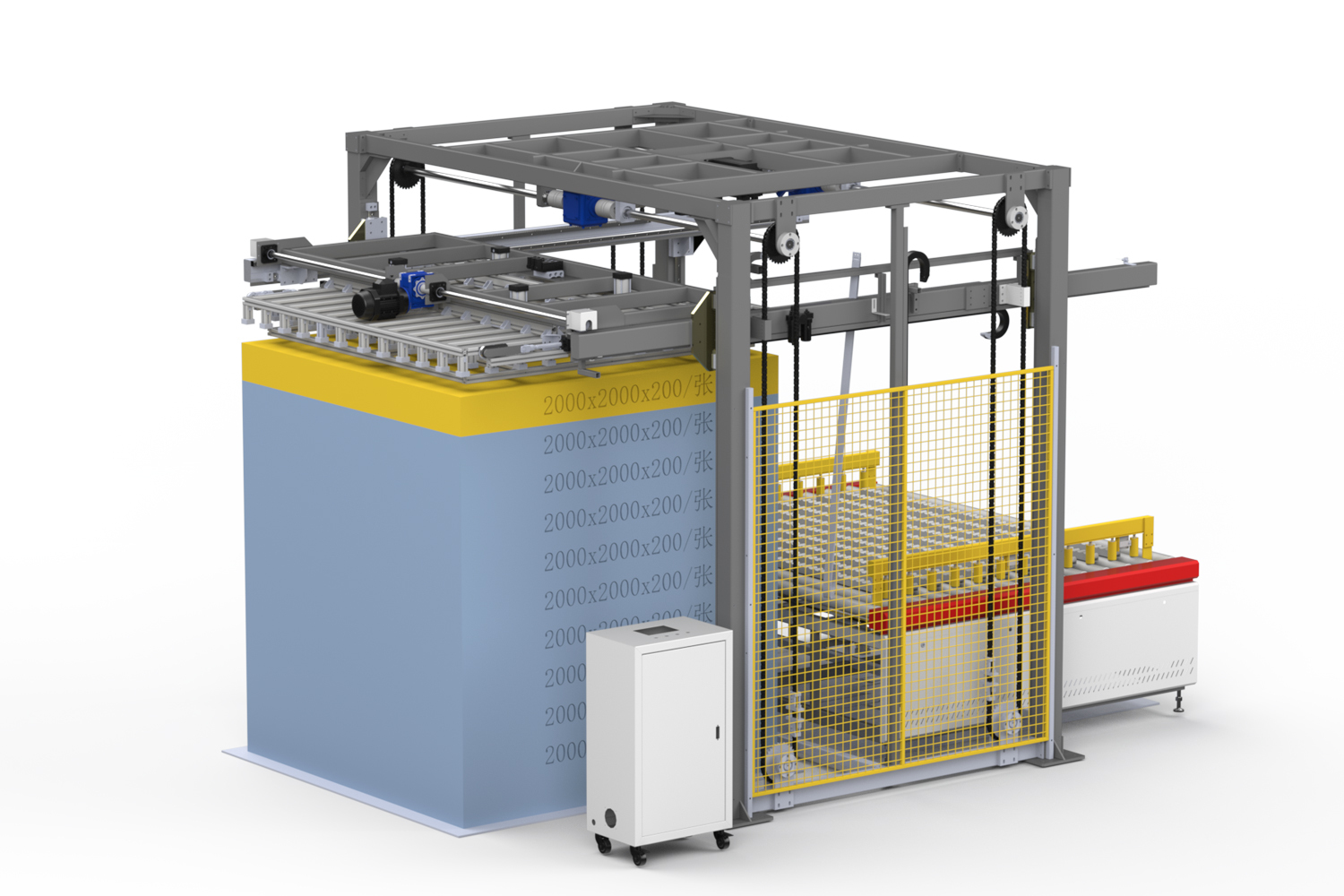

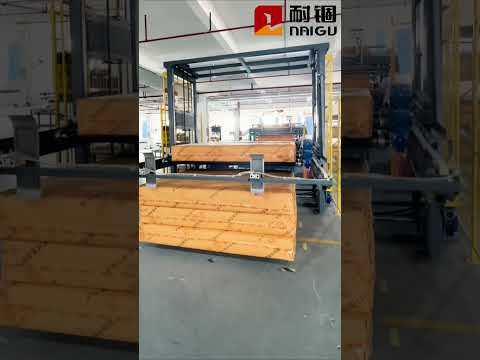

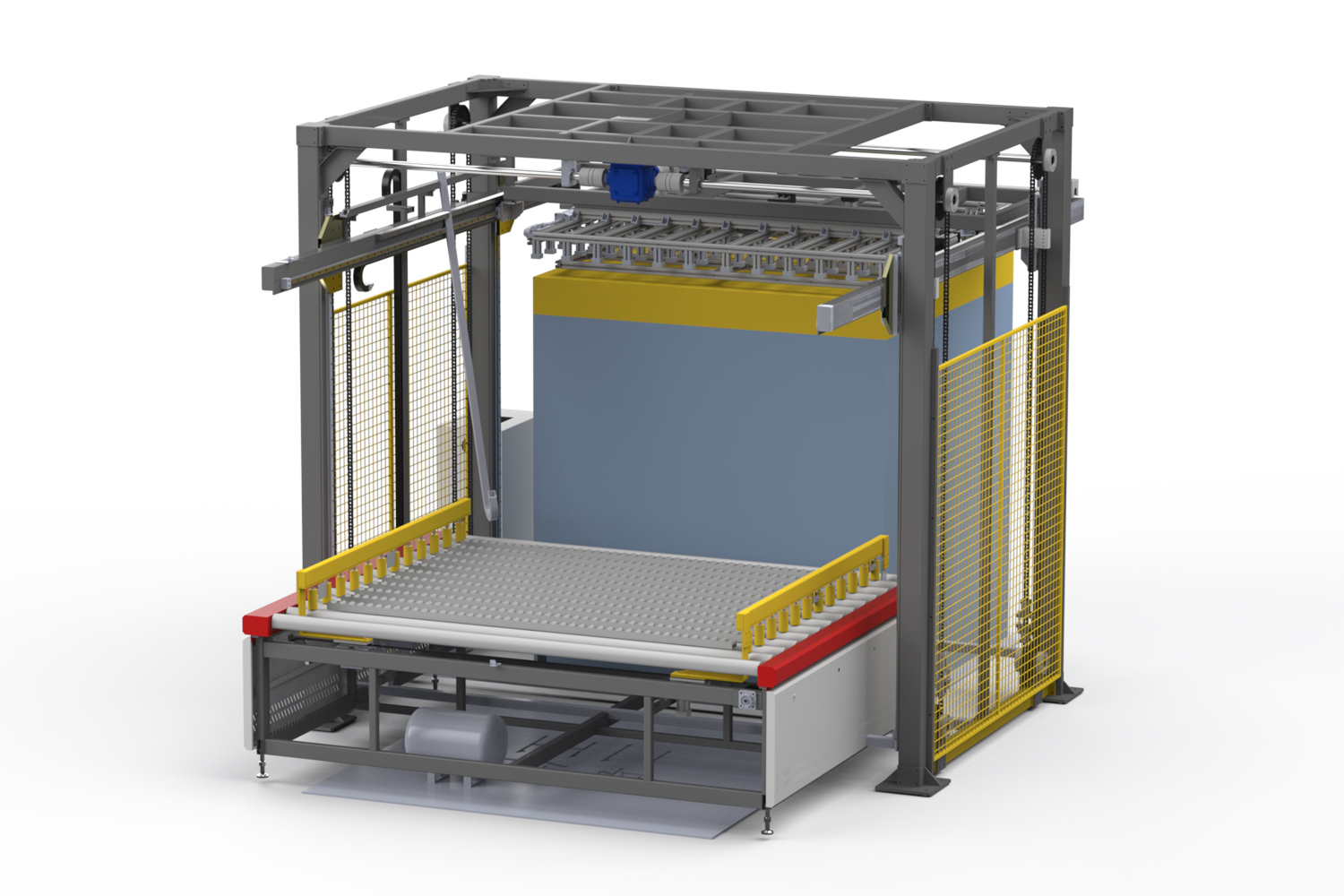

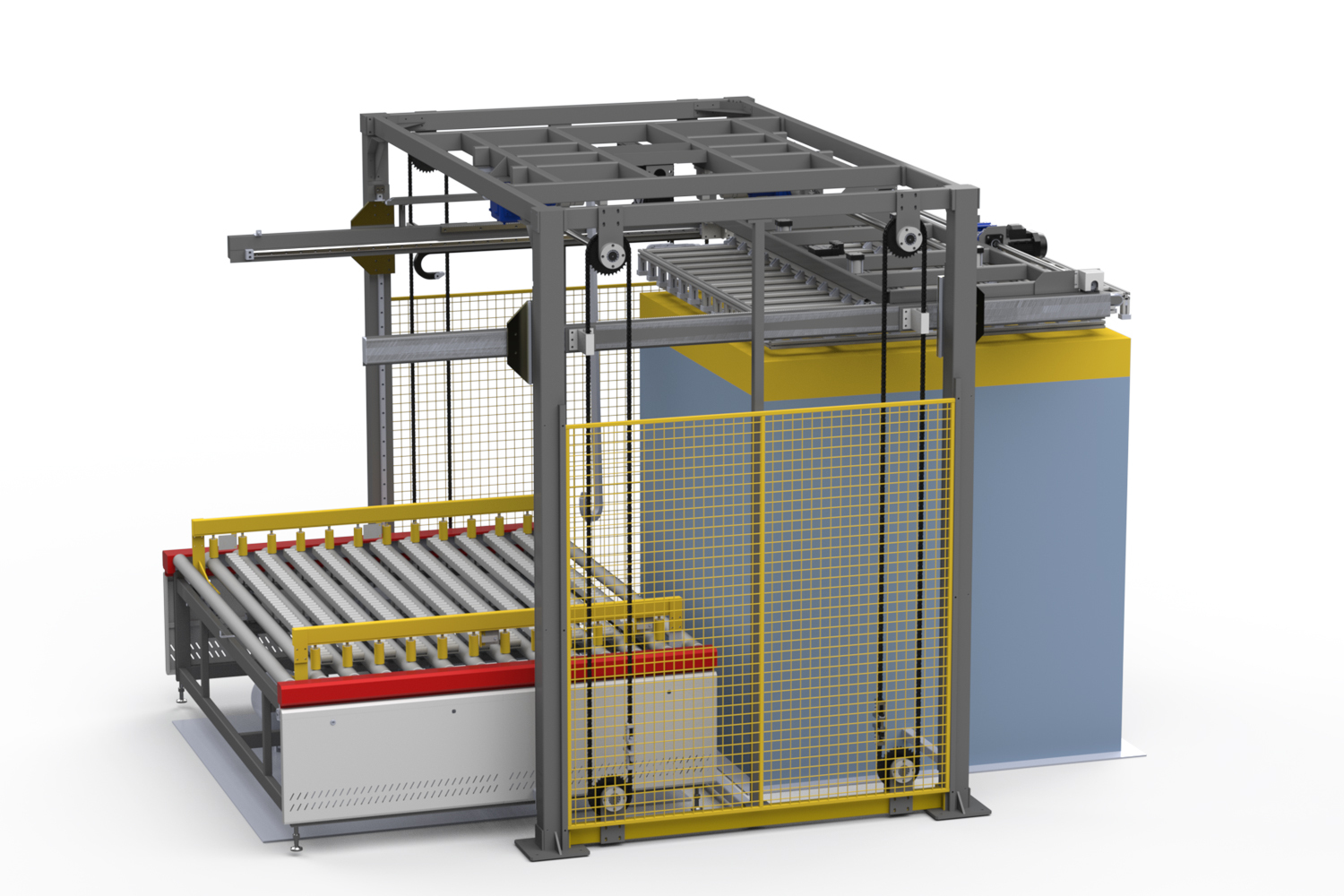

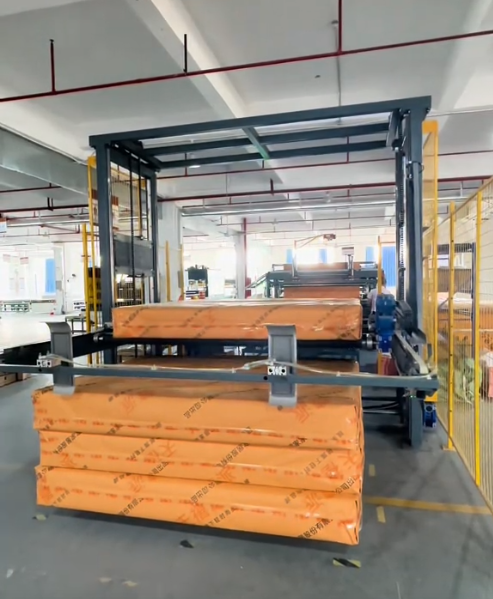

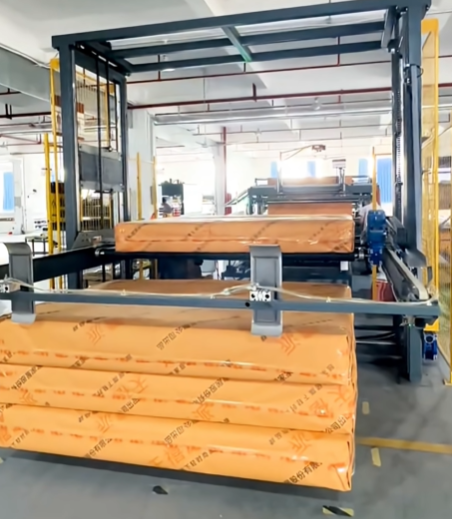

Bed Net / Palm Mat Destacking Machine – Efficient Material Separation for Continuous Production
Bed Net / Palm Mat Destacking Machine is specially designed to automatically separate stacked bed nets, palm mats, or coir mats, ensuring a continuous and efficient feeding process for mattress production lines. It reduces manual labor, improves automation, and guarantees smooth material handling.
Product description
The Bed Net / Palm Mat Destacking Machine is an intelligent material handling system built to automatically destack and feed flexible, flat-layered materials such as spring bed nets, palm fiber mats, or coconut coir pads. With a programmable control system and adjustable gripping arms, it efficiently separates each piece without damaging the material.
Ideal for integration into automated mattress production lines, this machine enhances workflow continuity, increases production speed, and significantly reduces manual workload.
Automatic Destacking – Precisely lifts and separates stacked materials layer by layer
Sensor-Controlled Operation – Ensures accurate positioning and feeding
Wide Compatibility – Suitable for palm mats, bed nets, and similar flat products
Adjustable for Different Sizes & Thicknesses
Smooth, Non-Damaging Gripping System – Protects fragile materials
Stable & Continuous Feeding – Perfect for 24/7 production needs
PLC + Touchscreen Interface – Easy setup and real-time monitoring
Technical specification
|
External dimensions |
L3800*W3600*H3200 |
|
Lifting height |
320-2300mm |
|
Maximum stacking height |
2200mm |
|
Weight |
About 2000kg |
|
Total power |
45kw |
|
voltage |
380V/50HZ |
|
Efficiency |
20s/pcs |
|
Maximum gas consumption |
20L/min |
|
Pressure |
≥6mpa |
|
Absorption method |
needle disk, strong magnet |
|
Main electrical brands |
Siemens, Huichuan |
|
Main pneumatic components |
Air TAC |
|
Applicable scope of brown mat |
length:1000-2000mm width:700-2000mm height:≥15mm max weight:15kg |
|
Applicable scope of bed net |
length:≤2000mm width:≤2000mm height:≤30mm max weight:50kg |
Product advantages
▶ Automatic function,greatly helps improve mattress assembly and production efficiency.
▶ Easy and safe to operate, reduce labors and time,save costs of training operate.
▶ Stable performance,uses Siemens as main electrical brands.
▶ CE certification,quality assurance.
