Product description

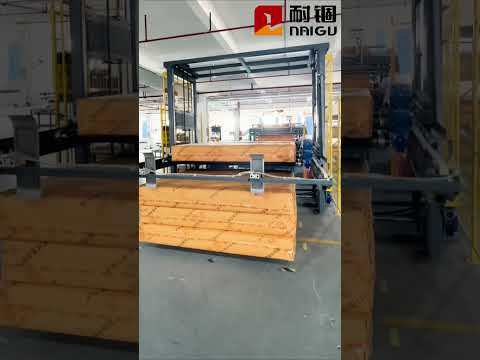

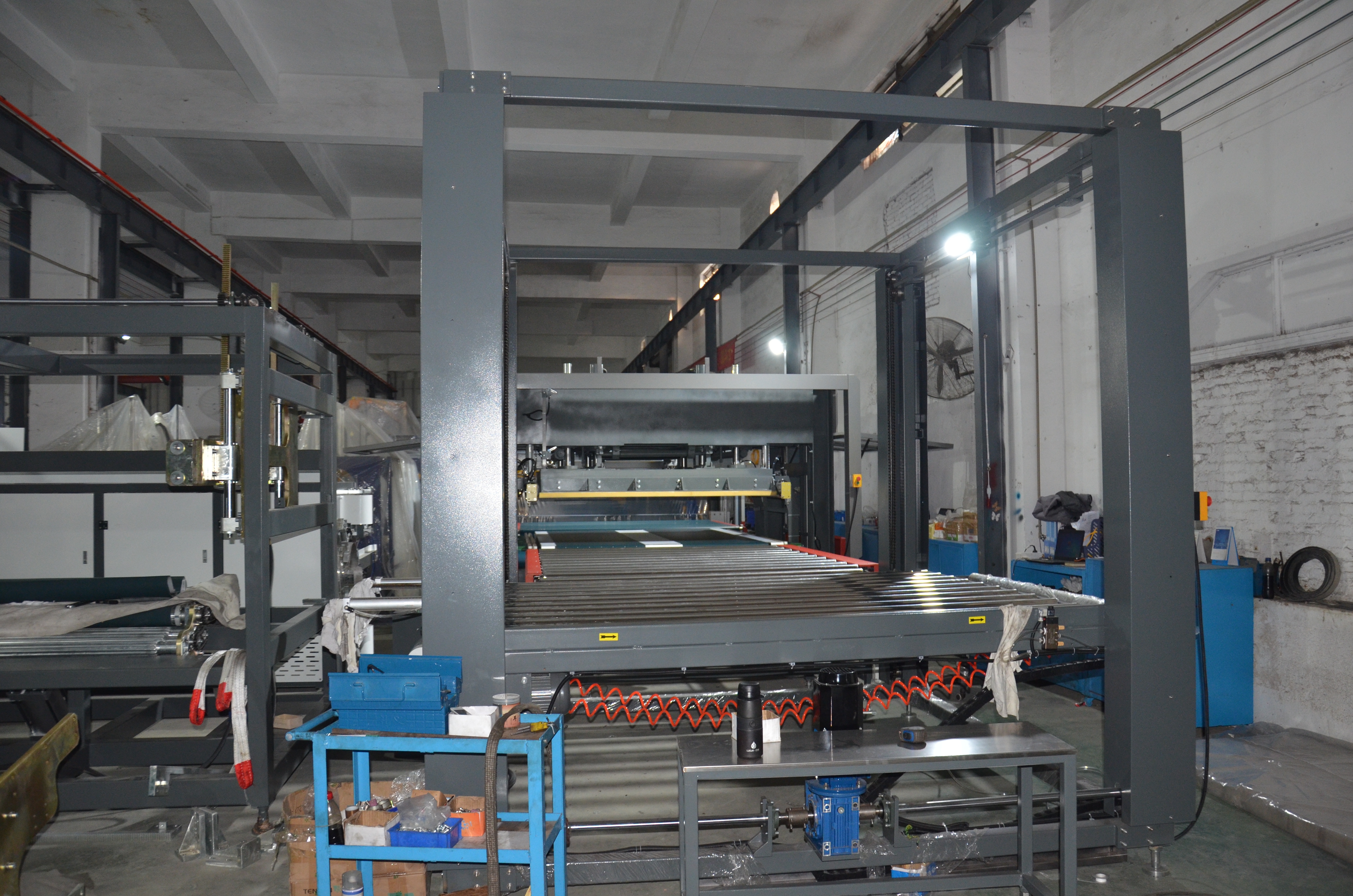

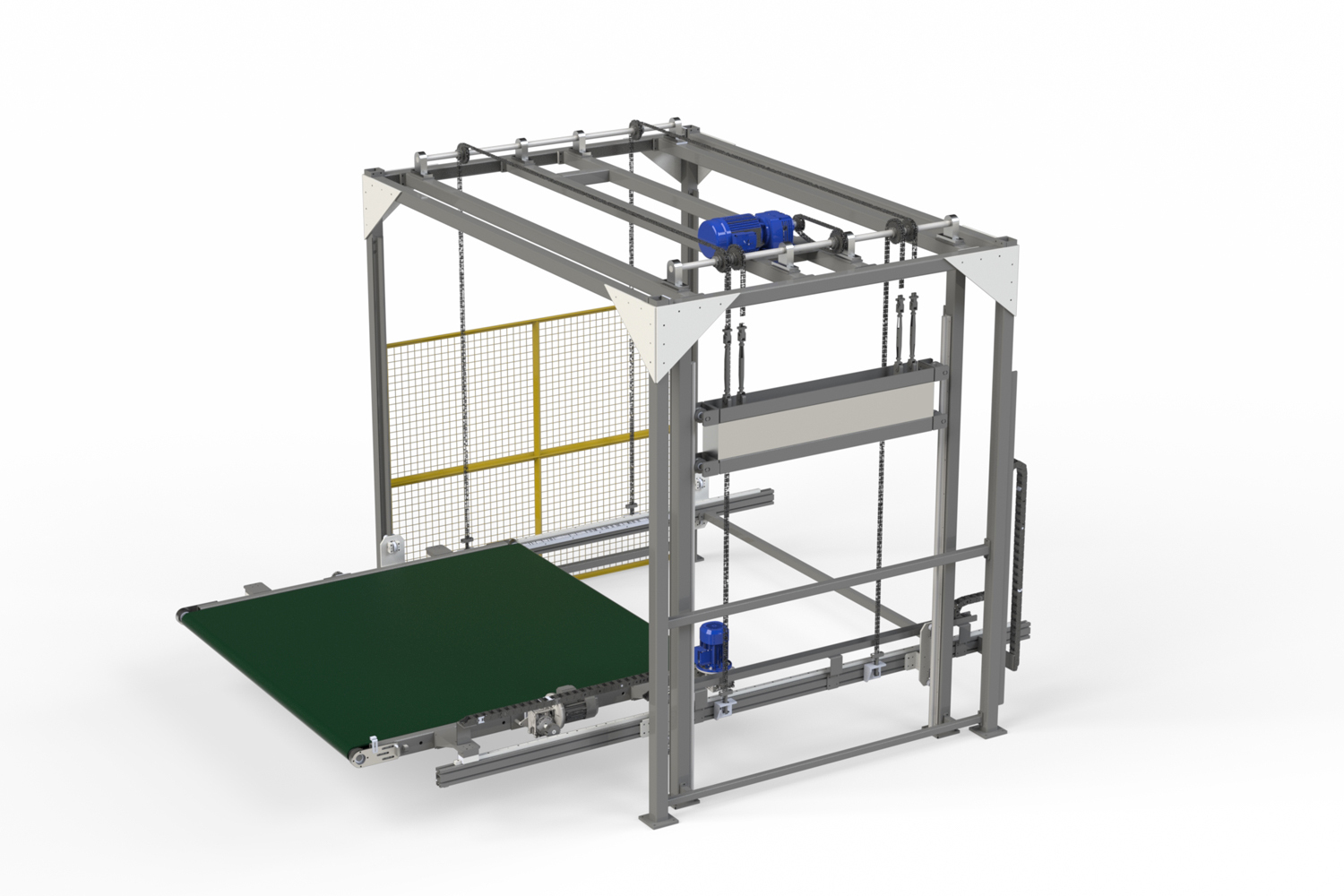

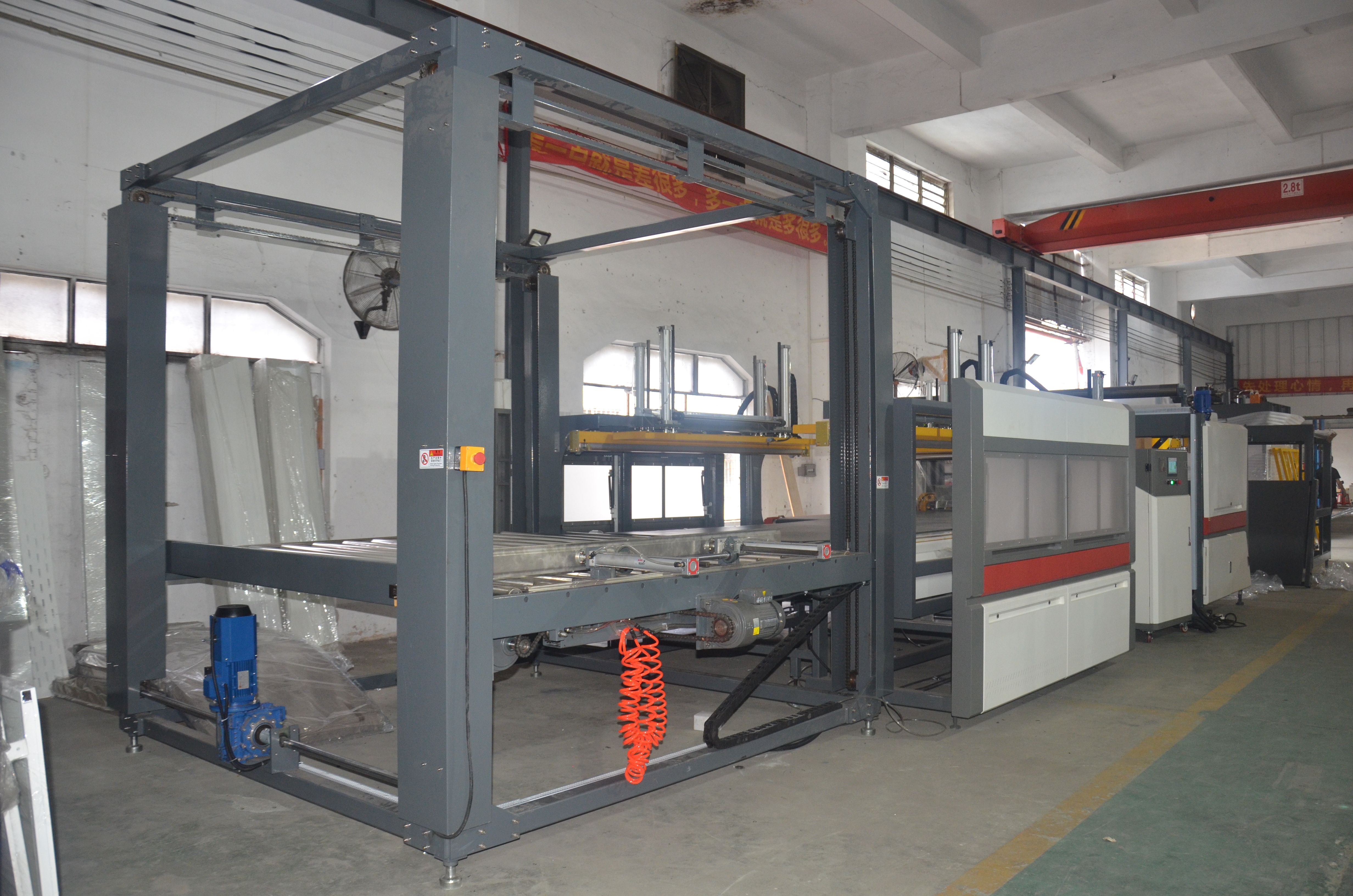

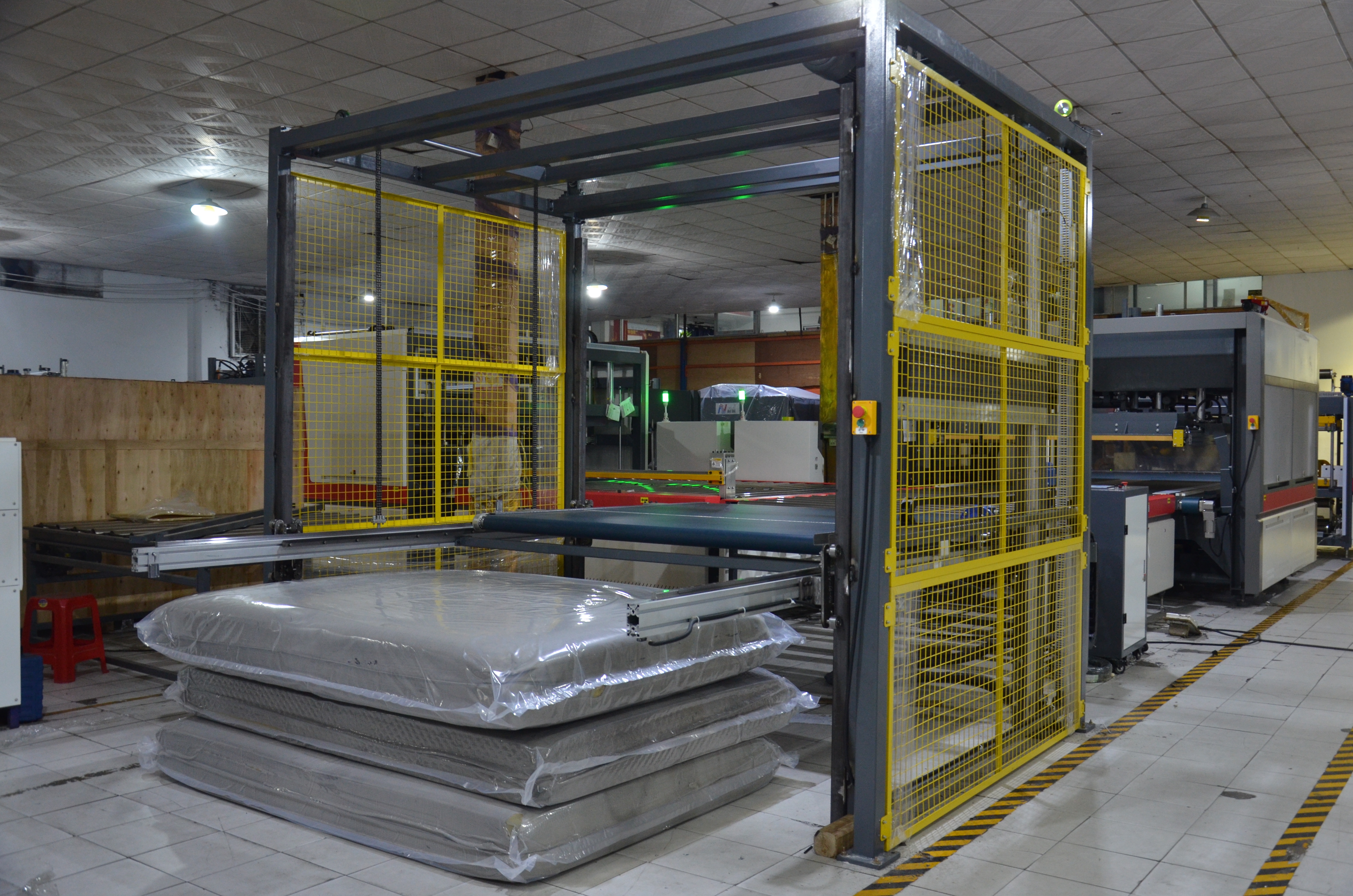

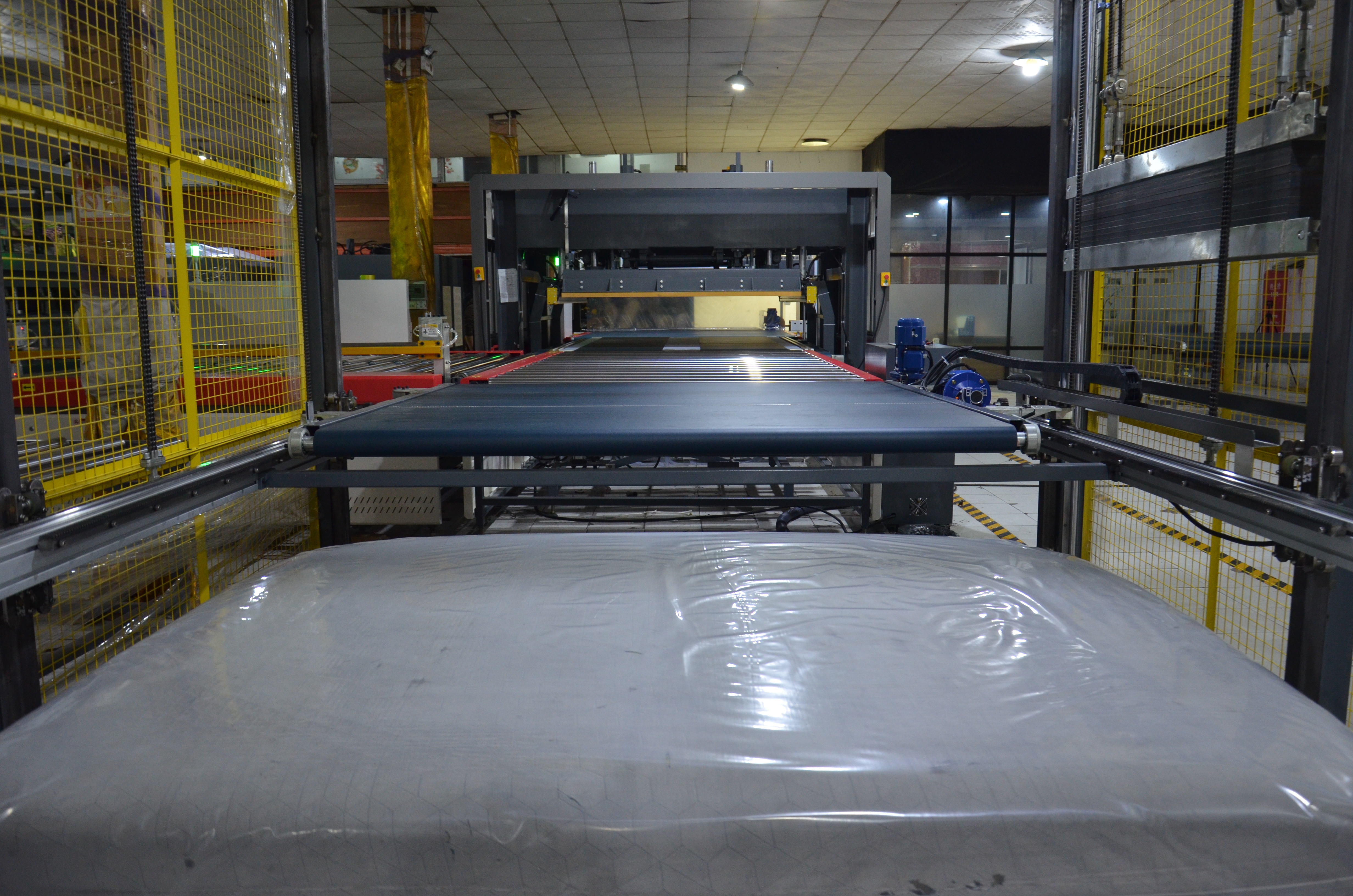

NG-T1 Mattress Stacking Machine is a straight out type automatic mattress stacker, which consists of three parts, namely: lifting mechanism, roller conveyor platform, and pushing mechanism.
Technical specification
|
Maximum working size |
2200 * 2200mm |
|
Maximum height |
2400mm |
|
Minimum height |
280mm |
|
Maximum stroke |
2120mm |
|
Lifting speed |
300mm/s |
|
Power |
3.7KW |
|
External dimension |
3900x3320x3108mm |
|
Weight |
400kg |
Product advantages
▶ Specialized electronic control system, which can ensure automatic lifting and stacking according to different mattress sizes and heights.
▶ Bidirectional push out mechanism, it can be selected as left out or right out to achieve two feeding areas, uninterrupted stacking, and improve the efficiency of machine operation.
▶ Greatly improve speed and efficency of mattress production and assembly line.
▶ Easy and safe to operate, save the costs to training operator and reduce labor and effort.
▶ Compact design and stable performance,and after-sales services in place.
