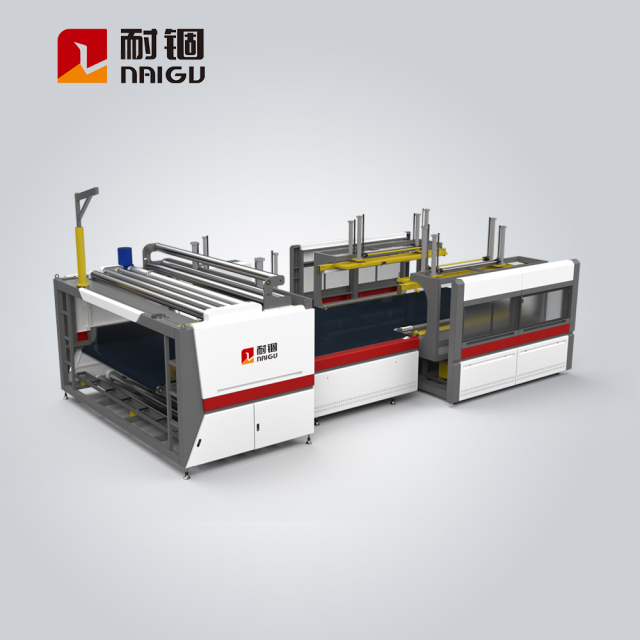

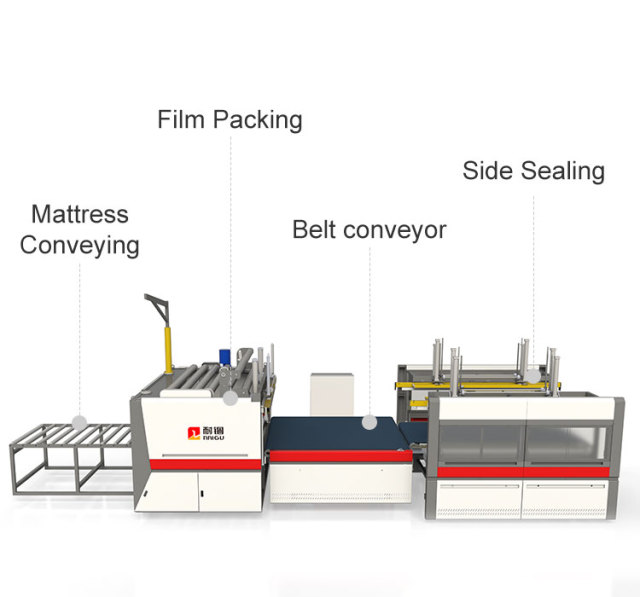

Fully automatic mattress packing machines are equipment used to efficiently package mattresses, designed to improve production efficiency and reduce transportation costs. These machines are able to automatically complete the processes of bagging, and sealing mattresses, and are suitable for various types of mattresses, including foam mattresses, latex mattresses and spring mattresses.This machine is specialized in mattress film packaging, can achieve high package efficiency of 100-120 sheets/hour.
Product Description
Whether it is memory foam, spring mattress or mixed material mattress, NG-51MS can achieve high-standard packaging effect for you, helping to improve production efficiency and brand competitiveness.
Technical specification
|
Mattress Width |
800-2200 MM |
|
Mattress Length |
1800-2100 MM |
|
Mattress Height |
50-400 MM |
|
packing Speed |
30 S/ PCS |
|
PE film width |
≤2950 MM |
|
Air pressure |
0.8MPa; 0.78 M3/Hour |
|
Packaging Materials |
PE PLASTIC |
|
Machine Total Power |
18 KW |
|
Machine External Size |
L9200 * W3800 * H3020 MM |
|
Weight |
5000 KG |
|
Voltage |
3 Phases 380V/50HZ |
Product advantages
▶ Strong applicability; suitable for film packaging of mattresses,sponges,brown pads and sponge sheets.
▶ High efficiency; beautiful package effect, firm hot sealing.
▶ Stable performance, uses Siemens PLC control system and electrical components.
▶ Safe and easy to operate and control; the control panel can be translated into various languages,and is equipped with a remote system,which is convenient for installation and maintenance.
