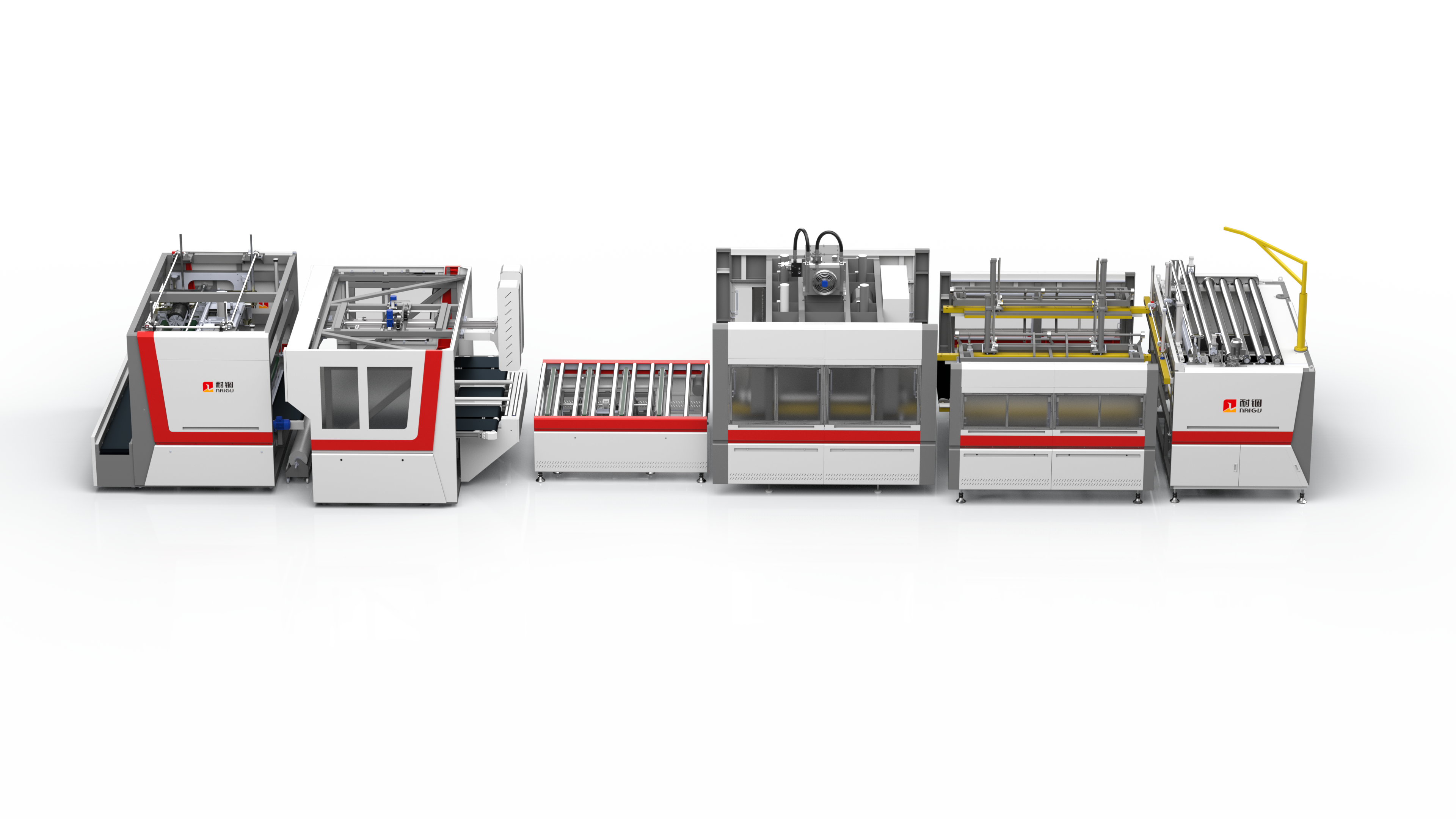

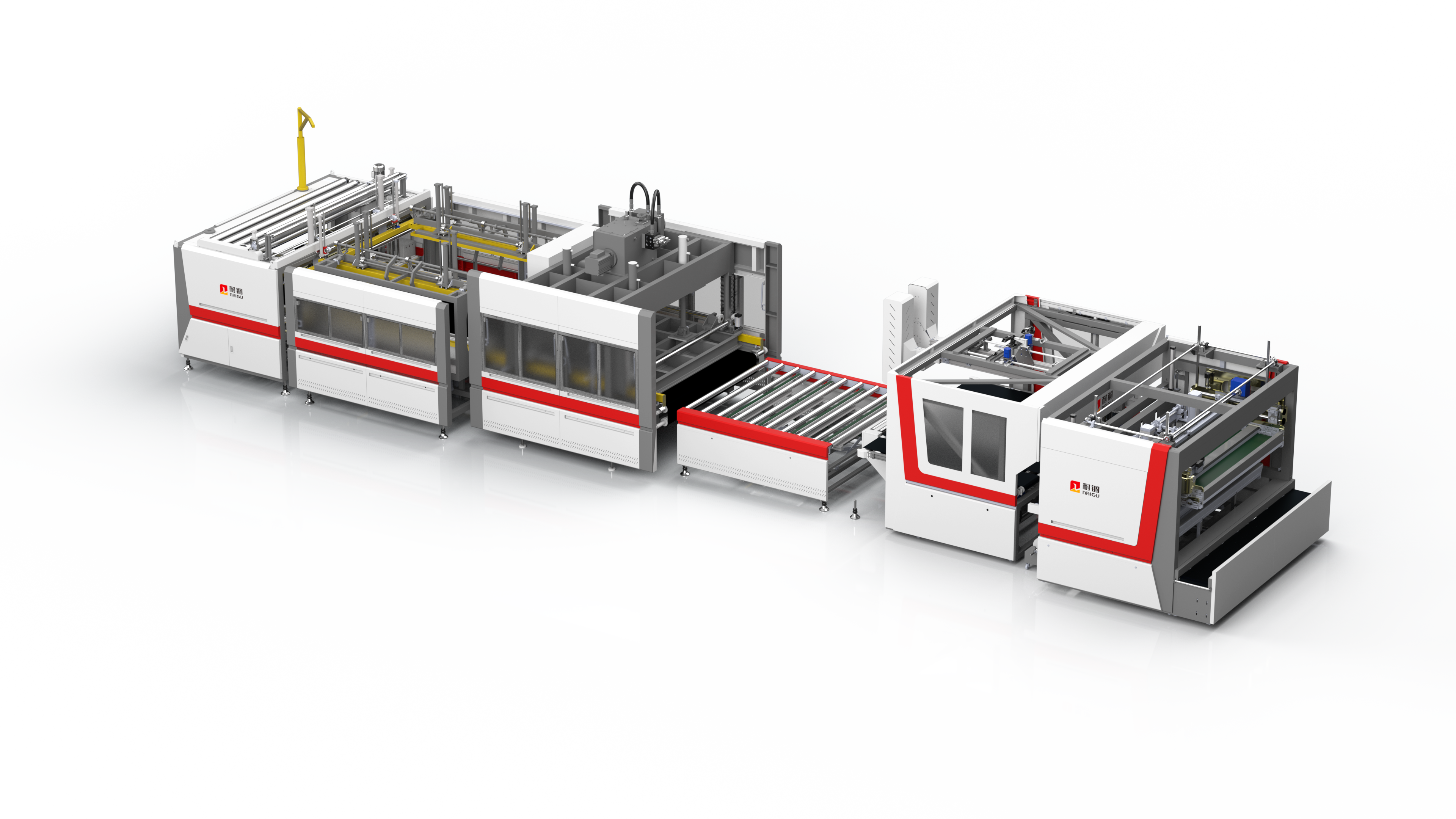

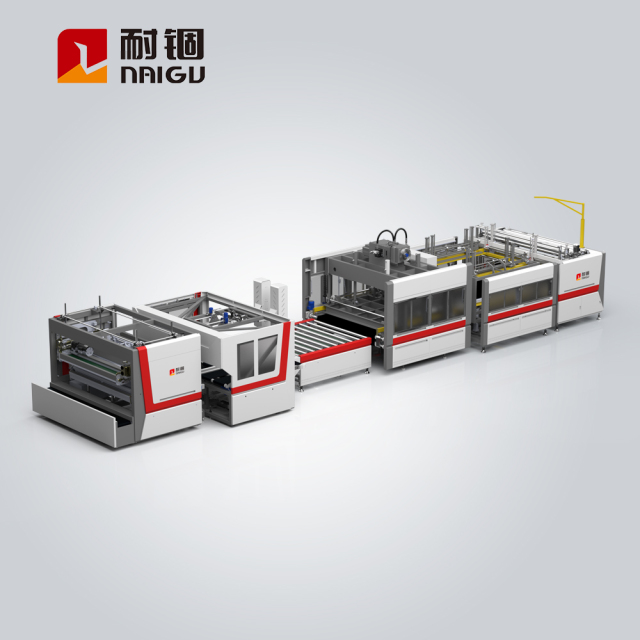

The NG-29RL is a fully automatic mattress compression and roll-packing solution designed for high-capacity production lines. This advanced machine efficiently compresses, folds, and roll-packs a wide range of mattresses—including foam, pocket spring, and hybrid types—into compact and transport-friendly sizes. It supports straight roll-packing, bi-fold roll-packing, and tri-fold roll-packing, giving mattress manufacturers flexibility to meet diverse shipping requirements.
With a 100T hydraulic press, adjustable roll diameter (220–480mm), and a cycle time of just 35 seconds per mattress, the NG-29RL offers a powerful combination of speed, precision, and reliability. Its intelligent automation minimizes manual handling, reduces labor costs, and greatly improves operational efficiency.
Fully Automatic Operation: From feeding, compressing, folding to rolling—no manual intervention required.
Multiple Roll-Packing Modes: Straight, bi-fold, and tri-fold packing options to adapt to different logistics needs.
Heavy-Duty Compression: 100T standard pressure ensures strong and consistent compression results.
High Efficiency: Up to 35 mattresses per hour, supporting continuous production environments.
Adjustable Roll Diameter: Output diameter from 220mm to 480mm for flexible container loading.
Wide Mattress Compatibility: Suitable for mattresses up to 2200×2000mm in size and 450mm in height.
Space-Saving Design: Reduces mattress volume significantly to optimize container space and shipping cost.
| Parameter | Value |
|---|---|
| Voltage | AC 380V / 50Hz |
| Oil Cylinders | 4 pcs |
| Pressure Plate Size | 2300mm × 2260mm |
| Max Mattress Size | 2200mm × 2000mm |
| Mattress Height | ≤ 450mm |
| Max Lifting Height | 500mm |
| Outer Roll Diameter | 220–480mm (adjustable) |
| Efficiency | 35 sheets / hour |
| Power Consumption | About 52KW |
| Machine Size | L16000 × W3600 × H3100mm |
| Net Weight | 18 tons |
Reduce up to 70% of packaging volume
Improve export container utilization
Lower labor costs through full automation
Enhance brand image with clean and uniform packed products
